One Ride Away

Inside this potent urban e-bike lies the wild and rugged heart of an explorer. With huge range, robust components, and grippy mixed-surface tires, the Tesoro is built to get you to it all week, and away from it all on the weekend.

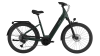

The Tesoro 3+ Low Step-Thru is tuned for fast, fluid movement. A SmartForm C2 alloy frame with a convenient step-through design makes mounting easy, while the Bosch 625Wh battery keeps power ready for long rides, steep climbs, and quick escapes. Shimano’s CUES 9-speed drivetrain delivers crisp, reliable shifts, and Shimano MT200 hydraulic disc brakes offer excellent control. Continental Race King tires roll fast on pavement and grip hard when the road turns rough. Add integrated lighting, full fenders, and a rear rack, and this e-bike is ready for whatever the day demands.

Highlights
Durable, lightweight, low-step SmartForm C2 Alloy frame with integrated headtube reflector
Quiet, powerful Bosch Performance Line Drive Unit with up to 75Nm of torque and 340% max support
625Wh Bosch PowerTube Battery provides plenty of range in a compact package
Full color, ergonomic Purion 200 display. All your information and controls at thumb’s reach
Smooth and reliable Shimano CUES wide-range 9-speed shifting

Batterie: Bosch PowerTube, 625Wh
Ladegerät: Bosch 2A
Display: Bosch Purion 200
Motor: Bosch Performance Line, Smart System, 25 km/h
Extras: Axa Compactline 35E front light, Axa Blueline rear light, Abus framelock (key-matched with battery lock), Tubus rear rack (25kg, Racktime SnapIt 1.0 compatible), full-coverage fenders
Rahmen: Tesoro Low Step-Thru, SmartForm C2 Alloy, removable 625Wh downtube battery, integrated headtube reflector, tapered headtube, internal cable routing, 135mm QR hub spacing, IS disc mount, motor protection
Kurbelsatz: FSA Bosch E-bike
Gabel: SR Suntour Mobie A32, 63mm travel, coil with preload adjuster, lockout, crown light mount, 44mm offset
Kette: KMC e500
Bremsen: Shimano MT200 hydraulic disc, 180/180mm RT10 rotors
Bremshebel: Shimano MT200 hydraulic disc
Umwerfer hinten: Shimano CUES U4000
Kassette: Shimano CUES LG300, 11-46, 9-speed
Lenker: Cannondale Urban Ergo Bar, 6061 Alloy, 25mm rise, 35° sweep, 0° rise, 680mm
Steuersatz: Semi-Integrated, Tapered; 1-1/8"-1-1/2"
Griffe: Ergon GC10
Nabe: (F) Shimano TC500, 15x100mm thru-axle / (R) Shimano R600 centerlock, 32H, QR
Pedale: Cannondale Urban Platform
Reifen: Continental Race King, 27.5x2.2" 55-584 (SM), 29x2.2" 55-622 (MD-LG)
Felgen: Alloy, double wall, 32 hole, 25mm internal width, disc-specific
Speichen: Stainless Steel, 14g
Schalthebel: Shimano CUES U6000, trigger style, 9-speed
Sattel: Selle Royal Essenza
Sattelstütze: Cannondale 4, 6061 Alloy, 31.6, 300 (SM), 350mm (MD), 400mm (XL)
Lenkervorbau: Cannondale 3 w/ Intellimount, Alloy, 31.8mm clamp, 70mm, +6°, w/ SP Connect SPC+ Stem Mount
